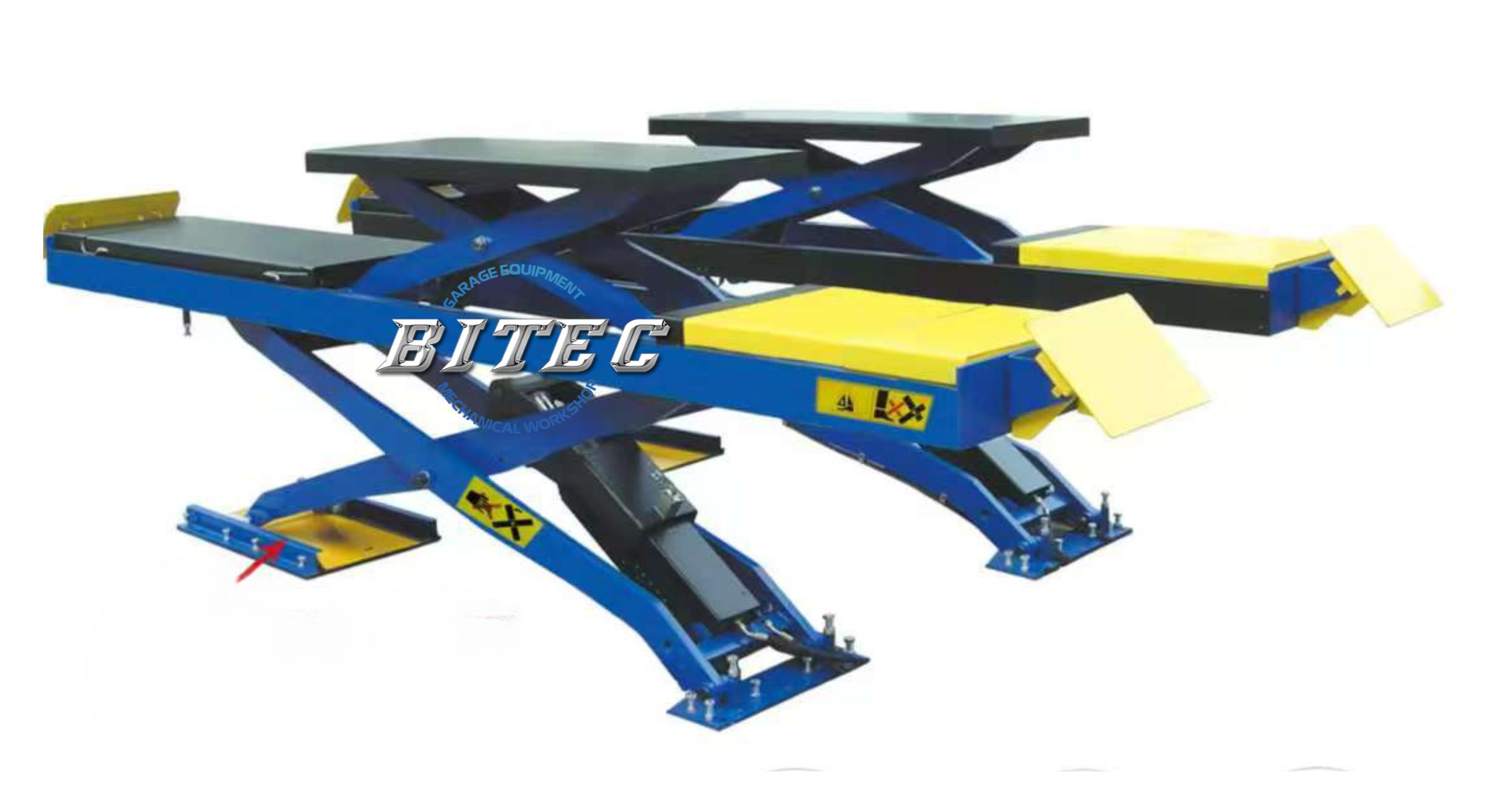

GC-MSI Scissor Lift for Wheel Alignment Check
The GC-MSI Scissor Lift for wheel alignment is used for precise wheel alignment, designed for installation in the ground, operated with a safe 24V voltage, and integrates a wheel lift table with flexible expansion options.
The GC-MSI Scissor Lift for Wheel Alignment Check is a two-level scissor lift designed specifically for checking and adjusting wheel alignment angles. The device can be installed in the ground, making it suitable for professional automotive garages. It comes in various weight capacities ranging from 3.5 tons to 5.5 tons, suitable for a wide range of vehicles.
Key Features:
Two-Level Scissor Structure, integrated with a wheel-free lift table.
Low Voltage Control (24V), enhancing safety.
Mechanical Locking Mechanism on both sides, with pneumatic lock release.
Integrated Safety Valve and Parachute Valve for added safety.
Accurate Balance achieved by hydraulic synchronization.
Adjustable Turntable Position, suitable for various vehicle types.
Flexible Expansion Options including single/double lift tables, LED lights, and gap detection mats.

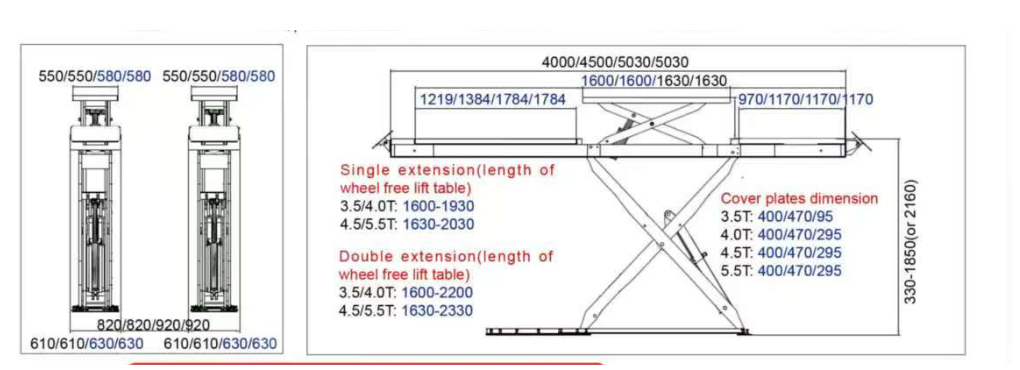

Specifications of the GC-MSI Scissor Lift for Wheel Alignment Check:
| Model | Lifting Capacity | Lift Table Length |
|---|---|---|
| GC-3.5MSI | 3500kg | 4000mm |
| GC-4.0MSI | 4000kg | 4500mm |
| GC-4.5MSI | 4500kg | 5030mm |
| GC-5.5MSI | 5500kg | 5030mm |
